Hufnagel III
Classifications
pseudocylindric
equal-area

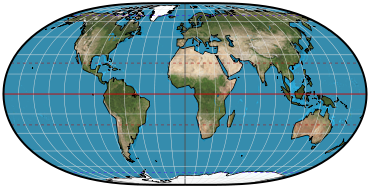

Graticule
Meridians: Complex curves. Central meridian is straight and half the length of the equator.
Parallels: Straight parallel lines.
Poles: Points.
Symmetry: About the central meridian and the equator.
Scale
Correct along the 40°39′N/S parallels.

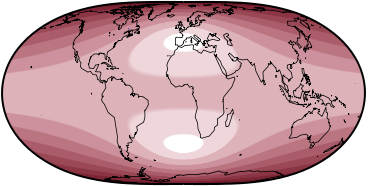

Distortion
Free of distortion only at 40°39′N/S on the central meridian.
Similar projections
MyBryde Thomas II has a short pole-line.
Origin
Presented by Herbert Hufnagel, 1989, who devised the base projection to be highly configurable while always yielding equal-area results. Hufnagel detailed many specializations of the base projection. This is one of those specializations, parameterized as follows:.
ψ[max]: 90°.
A: ½.
B: 1/18.
Aspect ratio: ½.
Description ©2010–2020 Mapthematics LLC.
