Putniṇš P4´
Classifications
pseudocylindric
equal-area

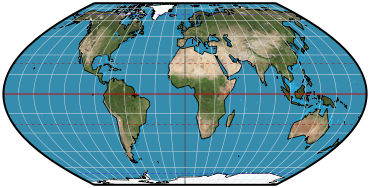

Graticule
Meridians: Central meridian is a straight line half as long as the equator. Other meridians are equally spaced portions of parabolas concave toward the central meridian.
Parallels: Unequally spaced straight parallel lines. Perpendicular to the central meridian.
Poles: Lines half the length of the equator.
Symmetry: About the central meridian or the equator.
Scale
Correct along 46°20′N/S parallels. Constant along any parallel.

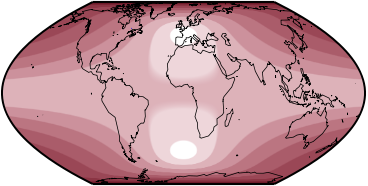

Distortion
Free of distortion at 46°20′N/S on central meridian. Moderate distortion along equator and in central regions; high distortion elsewhere.
Similar projections
Kavrayskiy VI and Eckert VI are very similar.
Origin
Presented by Reinholds V. Putniṇš, 1934.
