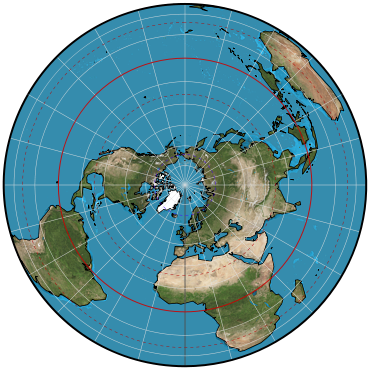

far-side perspective

Parameters: Distance from center in multiples of radius

Description

A perspective projection in which the far-side point of perspective can be specified.

Classifications

azimuthal
perspective

Graticule

Meridians: Straight lines radiating from the central pole in polar aspect.
Parallels: Concentric circles in polar aspect.

Similar projections

This projection can be parameterized to yield the AMS lunar projection, the Clarke twilight projection, the Fischer far-side perspective, the James far-side perspective, Gretschel, and others.

Origin

Philippe de la Hire, 1701, appears to have been the first to propose a perspective point on the far side of the globe. The mathematics are no different than vertical perspective, which, having been investigated since antiquity, is not credited to any one person.

Description ©2010–2020 Mapthematics LLC.
