polyhedron conformal face  Parameters: Platonic solid, Face

Description

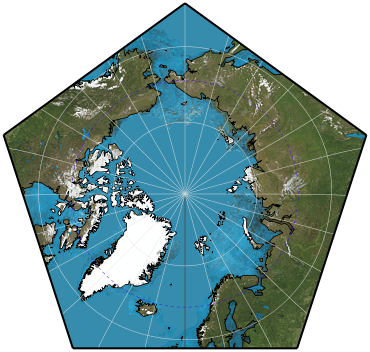

World projected conformally into any face of any platonic polyhedron. There are five platonic solids, each consisting of the same shape repeated some numbers of times, and each foldable into an approximation of a sphere:.
1. Tetrahedron (four faces, each a triangle).
2. Cube (six faces, each a square).
3. Octahedron (eight faces, each a triangle).
4. Dodecahedron (twelve faces, each a pentagon).
5. Icosahedron (twenty faces, each a triangle).

Classifications

polyhedral
conformal

Graticule

Meridians: Complex curves except for the edges and central meridian of each facet.
Parallels: Complex curves except for straight edge at base of each facet.

Distortion

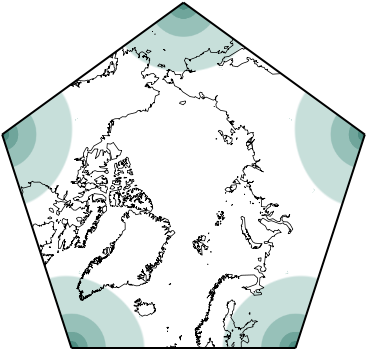

No distortion at the centroid of each face. Maximum distortion at the corners.

Parameters

Platonic solid: Choice of “tetrahedron”, “cube”, “octahedron”, “dodecahedron”, “icosahedron”.
Face: An integer from 0 through n-1, where n is the number of faces in the polyhedron.

Origin

Mathematical work on conformal projections for regular polyhedra largely originated with Oscar S. Adams from 1925 and onward. L.P. Lee greatly expanded upon and regularized the mathematics in 1976.
