Wagner V

Classifications

pseudocylindric

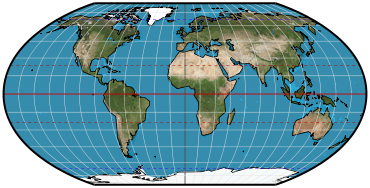

Graticule

Meridians: Central meridian is a straight line half as long as the equator. Other meridians are equally spaced portions of ellipses concave toward the central meridian.
Parallels: Unequally spaced straight parallel lines. Perpendicular to the central meridian.
Poles: Lines half as long as the equator.
Symmetry: About the central meridian or the equator.

Scale

Constant along any given latitude; same for the latitude of opposite sign.

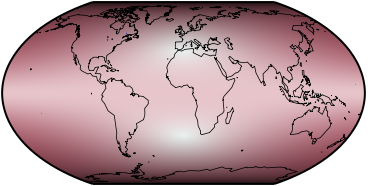

Distortion

Free of distortion nowhere. While not equal-area, areal inflation/deflation is low across most of the map except for the high latitudes, with angular deformation dominating.

Similar projections

Wagner VI is scaled larger and has equally spaced parallels.
Putniṇš P1´ has identical meridians, parallels with constant spacing, but is scaled slightly larger.
Robinson projection has rounder “shoulders”, proportionally longer pole lines, and is scaled a little smaller.

Origin

Presented by Karlheinz Wagner of Germany in 1949.
