Improving the Goode Homolosine

General discussion of map projections.
Milo
Posts: 282
Joined: Fri Jan 22, 2021 11:11 am

Re: Improving the Goode Homolosine

Post by Milo »

PeteD wrote: Sun Oct 12, 2025 11:24 pmI'd say more than just superficially. Its meridians are the mean of the sinusoidal projection and the plate carrée.
Which I consider superficial. The curves as a whole still look like sine waves, but scale along the curves is completely different in a manner that cannot be straightforwardly predicted from the shift to the curves themselves. Indeed, the plate carree isn't equal-area, so what Eckert VI is doing is combining an equal-area and non-equal-area projection, and then fudging the final results until they look equal-area again. In any case, the actual benefits of the sinusoidal projection are lost, as Eckert VI has neither a conformal equator or central meridian nor equally-spaced parallels, making there no discernable benefit to using sine waves over any other shape in this case.

Eckert V is less superficial, since it keeps the parallels at the same spacing, and so is an actual averaging of the sinusoidal and plate carree projections, and retains properties which both of those projections share. But it isn't equal-area.
daan
Site Admin
Posts: 985
Joined: Sat Mar 28, 2009 11:17 pm

Re: Improving the Goode Homolosine

Post by daan »

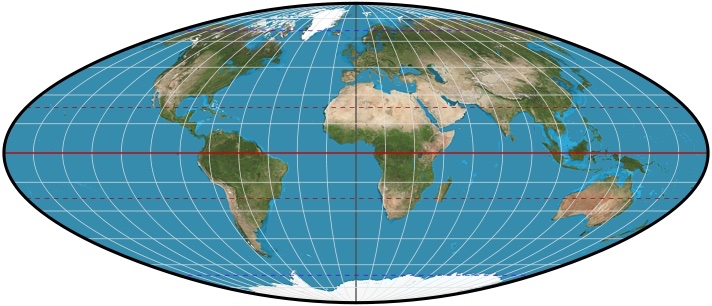

Hufnagel, 𝜓 = 90°N, A = 0.04, B = 0.05, height/width scaled to give no distortion at 0°N/0°E.

— daan
Attachments
daan
Site Admin
Posts: 985
Joined: Sat Mar 28, 2009 11:17 pm

Re: Improving the Goode Homolosine

Post by daan »

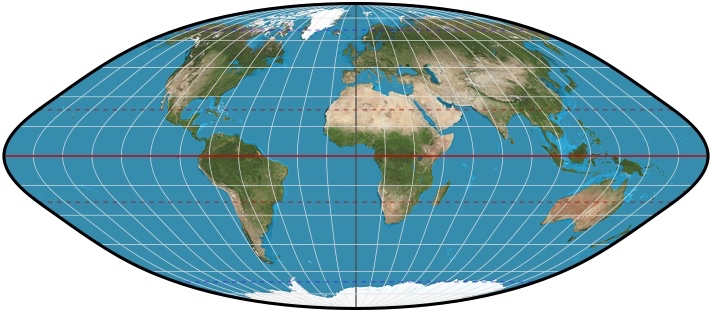

You can even get more of a kink if you really want it.
Hufnagel, 𝜓 = 90°N, A = –0.3, B = 0.11, height/width scaled to give no distortion at 0°N/0°E.

— daan
Attachments
daan
Site Admin
Posts: 985
Joined: Sat Mar 28, 2009 11:17 pm

Re: Improving the Goode Homolosine

Post by daan »

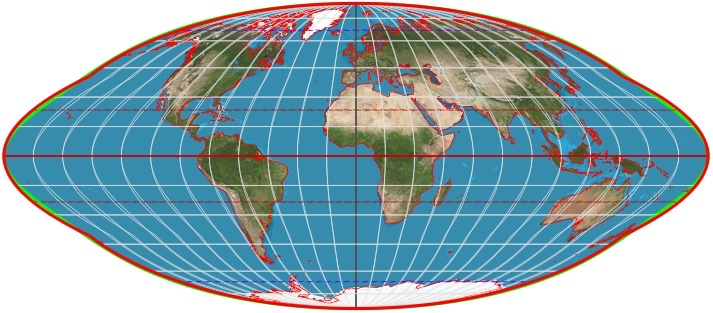

Red Goode superposed onto previous Hufnagel with green outline:
Attachments
